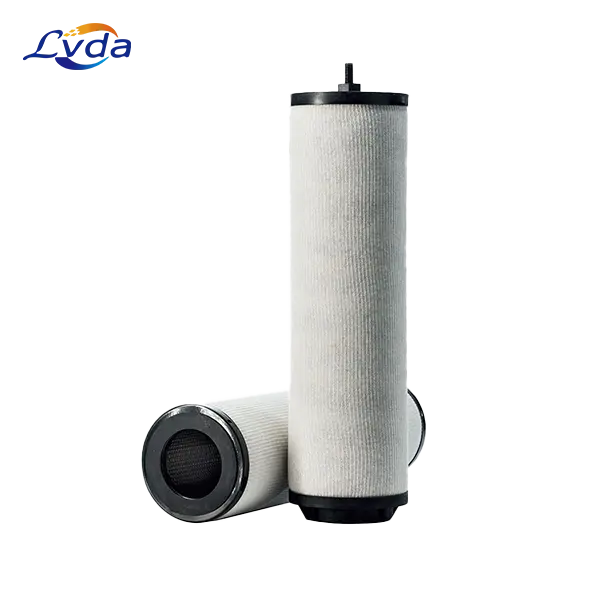

CAA22-5SB Coalescer Cartridges

Produktdetails

The CAA22-5SB is engineered for aviation and commercial fuel filtration systems, specifically designed to remove ultra-fine solid contaminants.

Technische Spezifikationen

Outer Diameter (OD): 6 inches (152 mm)

Inner Diameter (ID): 3.5 inches (89 mm)

Nominal Length: 23 inches (584  mm)

Mounting Style: Screw Base (injection molded, glass-filled nylon end caps)

Gasket Material: Permanent Buna-N compound

Max. Operating Temperature: 240°F (115°C)

Structural Collapse Pressure: Over 75 psi (5.2 bar)

Flow Direction: Inside-to-outside
